Regular price $50
Choose from these options:

12VDC Power supply options from Leviosa Shades:

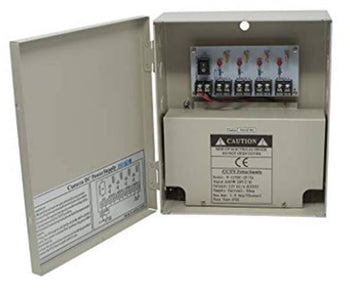

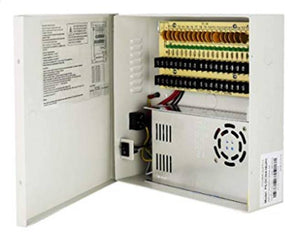

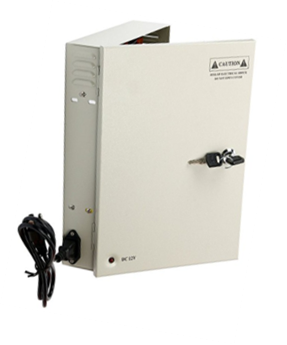

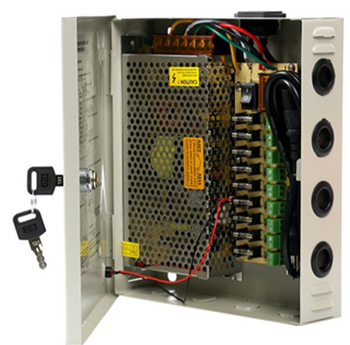

  • 3 different power supply boxes for either 4 shades, 9 shades, or 18 individual shades
  • Input 90-130V, 47~63Hz.
  • Output: 12V DC – 5/10/30 amp Supply Current. DC Voltage Adjustable Range: ± 10%
  • Multiple Outputs (4/9/18 channel) powering multiple shades - 2 wire connections (+ and -) for each shade
  • DC regulated, over current and voltage protected
  • Individual LED indicator for each out put, every channel is protected with fuses
  • Efficiency > 83%
  • Working Temperature and Humidity: -20~+40℃, 20%-93%RH
  • Easy to install, can be mounted to any surface, plugged and up in seconds

Electrical Box Sizes:

  • 4 shades:  9.9 × 8.3 × 6.4 inches
  • 9 shades: 9.7 x 8.2 x 2.0 inches
  • 18 shades: 10.9 x 10.7 x 3.4 inches

Electrical Specifications for Leviosa Shades HERE
